WPR SAE flange fitting 87992-16-16 is a high-pressure hydraulic flange connection. This article gives its specification, the pressure rating it is built for, and the hose sizes and applications it is used with.
WPR SAE flange fitting 87992-16-16 သည် ဖိအားမြင့် hydraulic flange အဆက်အသွယ် ဖြစ်သည်။ အသေးစိတ် စံချိန်စံညွှန်း၊ ဖိအားခံနိုင်ရည်နှင့် အသုံးပြုပုံကို ဖော်ပြထားသည်။
Diagram: BSP, JIC and NPT compared. BSP and JIC are parallel threads that seal on a seat; NPT is tapered and seals on the thread itself. A wrong match will start turning and then leak under pressure.
BSP, JIC နှင့် NPT နှိုင်းယှဉ်ချက်။ BSP နှင့် JIC သည် seat ဖြင့် ပိတ်ပြီး NPT သည် thread ဖြင့် ပိတ်သည်။ မှားယွင်းပါက ဖိအားအောက်တွင် ယိုစိမ့်သည်။
Related Articles
Product Identification
Product Name: WPR Hydraulic SAE Flange Fitting 87992-16-16 – High Pressure
SKU: 20239-WPR-HOS-MM
Part Number: 87992-16-16
Brand / Series: WPR
Product Category: Hydraulic / Fluid System → SAE Flange Fitting (High Pressure)
Product Name: WPR Hydraulic SAE Flange Fitting 87992-16-16 – High Pressure
SKU: 20239-WPR-HOS-MM
Part Number: 87992-16-16
Category: Hydraulic / Fluid System → SAE Flange Fitting (High Pressure)
Product Overview / Function
This product is a high-pressure hydraulic SAE flange fitting designed to connect hydraulic hoses or pipes to pumps, valves, or manifolds in heavy-duty hydraulic systems.
It provides a secure, leak-resistant flange connection suitable for continuous operation under high hydraulic pressure.
This product is system-based, not passenger-vehicle-model based.
ဤ Product သည် ဖိအားမြင့် Hydraulic System များတွင် အသုံးပြုသော SAE Flange Fitting ဖြစ်ပြီး
Hydraulic Hose / Pipe များကို Pump၊ Valve၊ Manifold များနှင့်
လုံခြုံစွာ ချိတ်ဆက်ပေးပါသည်။
Passenger Car များအတွက် မဟုတ်ပါ ✗
Technical Specification Table
| Specification | Details |
|---|---|
| Product Type | Hydraulic SAE Flange Fitting |
| Pressure Class | High Pressure |
| SAE Standard | SAE J518 |
| SAE Code | TBC (Code 61 or Code 62) |
| Working Pressure | TBC (Depends on SAE Code & size) |
| Flange Size | TBC |
| Bolt Pattern | TBC (Per SAE standard) |
| Sealing Method | O-Ring Seal |
| Connection Type | Flange to Hose / Pipe |
| Material | TBC (Carbon / Alloy Steel) |
| Surface Finish | TBC |
| Passenger Car Use | ✗ Not applicable |
⚠ Important: Final SAE code, pressure rating, and size must be confirmed before order.
Specification
SAE Standard — SAE J518
SAE Code — TBC (61 / 62)
Pressure — TBC
Sealing — O-Ring
Passenger Car — ✗ မသုံးပါ

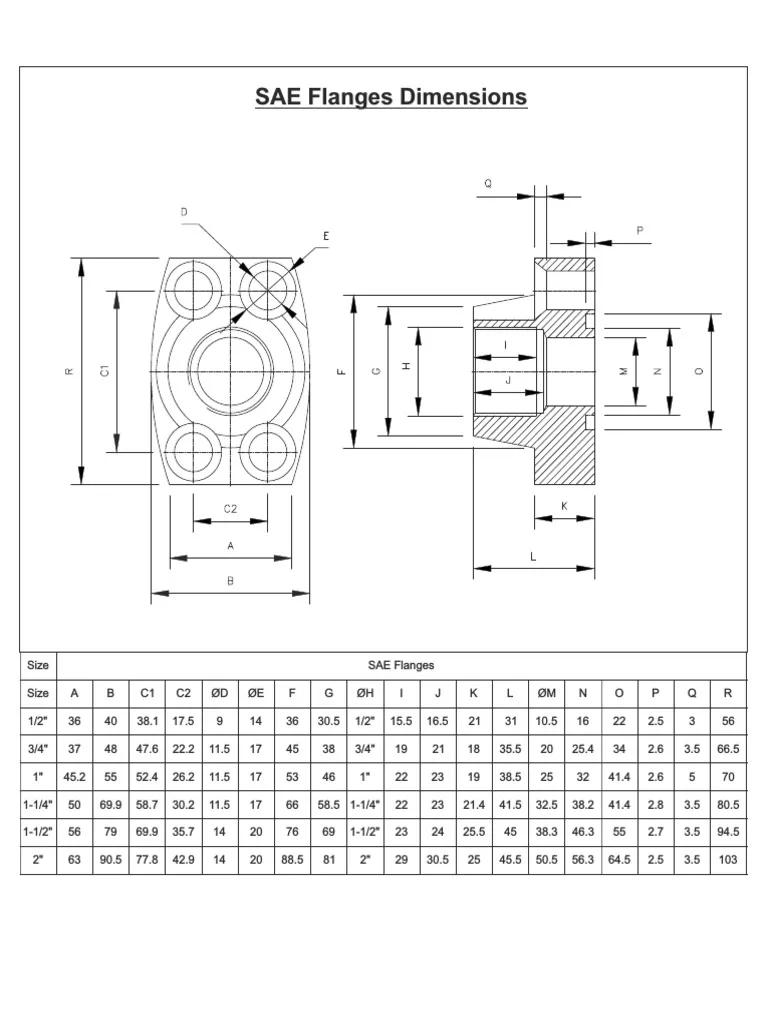

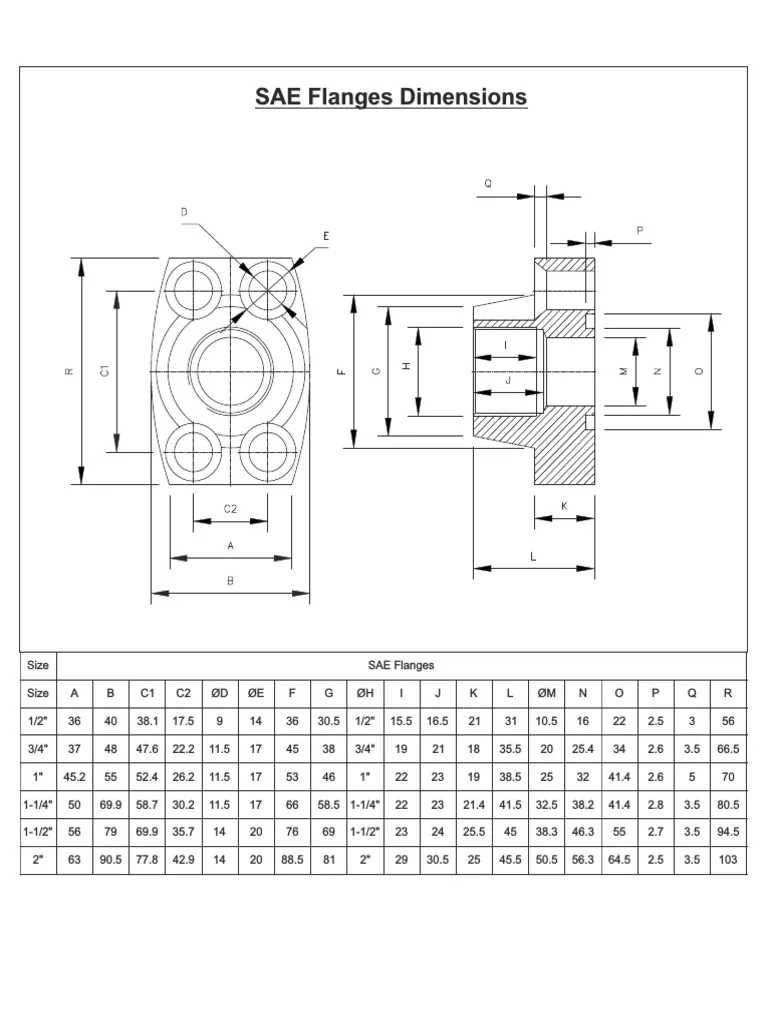

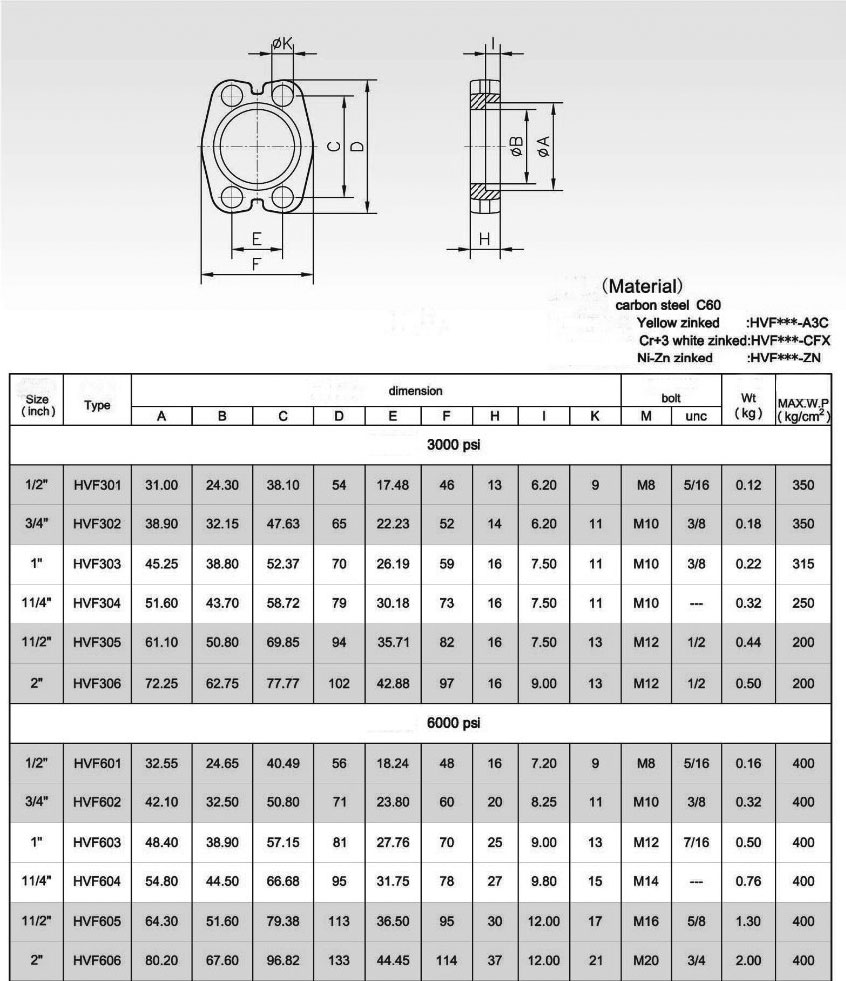

Technical Drawing (Reference Only)
The drawing illustrates the general geometry, bolt layout, and sealing position of a hydraulic SAE flange fitting.
Dimensions are reference-only unless officially confirmed.

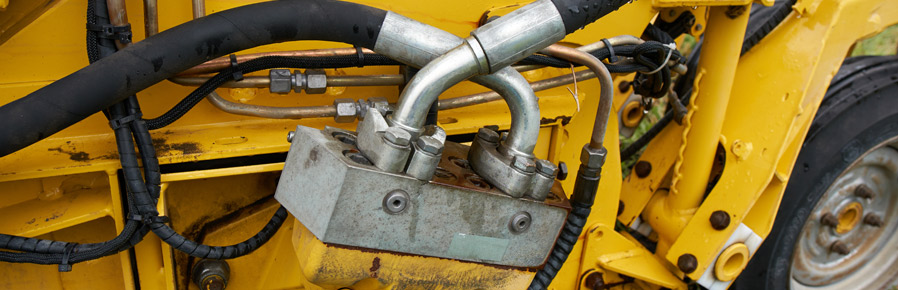

Physical Installation Position (Real-World Usage)
Installed at high-pressure hydraulic connection points, typically:
Hydraulic pump outlet
Control valve block
Hydraulic manifold
End of high-pressure hydraulic hoses
Secured using SAE flange bolts with O-ring sealing.
Hydraulic Pump အထွက်
Valve Block / Manifold
High-pressure Hose အဆုံး
Real / Physical Vehicles Using This Part
This fitting is physically used in:
Heavy trucks: dump trucks, mixer trucks, garbage trucks
Construction equipment: excavators, wheel loaders, cranes
Industrial vehicles: forklifts, material-handling machines
Agricultural machinery: tractors, hydraulic farm equipment
✗ Not used in normal passenger cars
Selection is based on SAE standard, pressure rating, and hose size.
Truck ကြီးများ
Excavator / Loader
Forklift
Tractor နှင့် Hydraulic စက်ပစ္စည်းများ
Official Product Page (Reference Only)
https://winautoparts.com/browse
Website information is reference only and does not confirm trade terms.
https://winautoparts.com/browse
Pricing & Trade Confirmation
Website price: Reference only
Trade price & availability: Confirmed via official support only
Support Channels
No order or payment is valid without official confirmation.
Important Notice
This article is a technical reference document.
Incorrect specification selection may cause system damage.
Always verify technical details before ordering.
